HASSbara® Alu-Line Finish Ø150-Ø446
HASSbara to Ø150-446 AL-P performance our tool has a wide range of applications in deep hole with a aluminium body and extensions. The lightweight body structure is suitable to processing at higher speed. Also ATC arm in CNC machine during tool change, for the tool to be heavy, it does not lower to the ground tool.For the extension to be used on this tool, HASSbara® Extentions refer to the products section.
According to the boring bars TC.. and CC.. insert types available. Tool through the supply of coolant, chips, processed by removal to prevent scratch the surface in the best way.

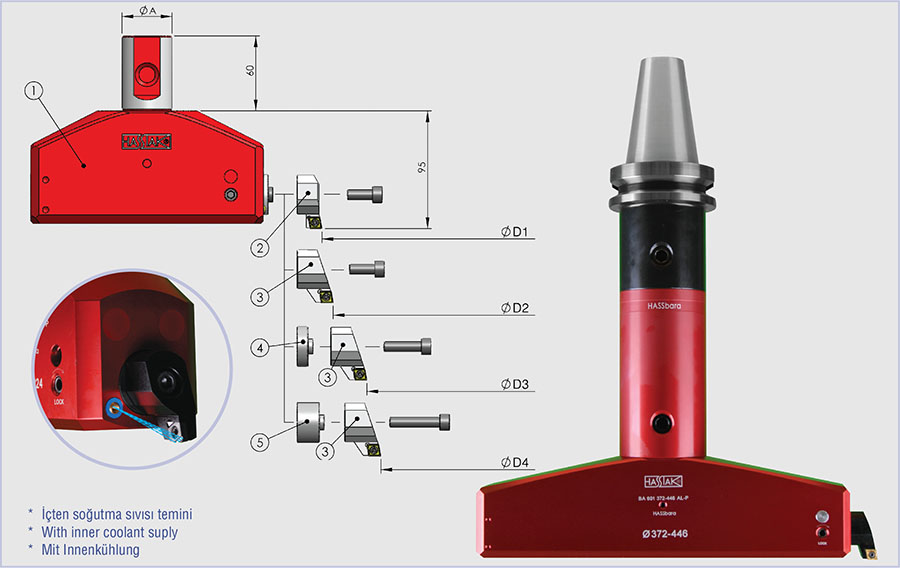

| Code No | Code | Ø Dmin - Ø Dmax | Ø D1 | Ø D2 | Ø D3 | Ø D4 | Ø A |
|---|---|---|---|---|---|---|---|
| H181P | BA 150-224 AL-P SET | Ø150 - 224 | Ø150 - 170 | Ø168 - 188 | Ø186 - 206 | Ø204 - 224 | 32 |
| H191P | BA 224-298 AL-P SET | Ø224 - 298 | Ø224 - 244 | Ø242 - 262 | Ø260 - 280 | Ø278 - 298 | 40 |
| H201P | BA 298-372 AL-P SET | Ø298 - 372 | Ø298 - 318 | Ø316 - 336 | Ø334 - 354 | Ø352 - 372 | 40 |
| H211P | BA 372-446 AL-P SET | Ø372 - 446 | Ø372 - 392 | Ø390 - 410 | Ø408 - 428 | Ø426 - 446 | 40 |
| No. | Code No | Code | Ø D1 | S | H | Uç | A | Light | Torks |
|---|---|---|---|---|---|---|---|---|---|
| 2 | H1721K | BA 601 KS 78-98 T AL | 78-98 | 20 | 44 | TC..11 | 90° | M2,5 | T08 |
| 3 | H1731K | BA 601 KS 96-116 T AL | 96-116 | 30 | 44 | TC..11 | 90° | M2,5 | T08 |
| 2 | H1722K | BA 601 KS 78-98 C AL | 78-98 | 20 | 44 | CC..09 | 90° | M3.5 | T15 |
| 3 | H1732K | BA 601 KS 96-116 C AL | 96-116 | 30 | 44 | CC..09 | 90° | M3.5 | T15 |
| 4 | H1711Y | BA 601 KU114-134 AL | 114-134 | - | - | - | - | - | - |
| 5 | H1712Y | BA 601 KU132-152 AL | 132-152 | - | - | - | - | - | - |
| 1 | H182P | BA 601 150-224 AL-P BODY | - | - | - | - | - | - | - |
| 1 | H192P | BA 601 224-298 AL-P BODY | - | - | - | - | - | - | - |
| 1 | H202P | BA 601 298-372 AL-P BODY | - | - | - | - | - | - | - |
| 1 | H212P | BA 601 372-446 AL-P BODY | - | - | - | - | - | - | - |
