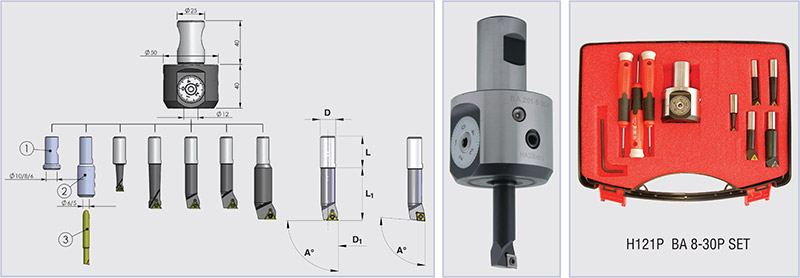

HASSbara® Performance Ø8-30P
Hasbara Ø8-30P ist eine zuverlässig Serie und dessen Verwendung bei kleinem Durchmesser ist vorteilhafter als bei einer Reibahle. Die Erweiterung für diese Werkzeuge finden Sie unter hassbara® Verlängerung.
Plattenhalter für TC .. und CC .. Wendeschneidplatten stehen zur Auswahl. Unsere Werkzeuge sind mit Innenkühlung. Diese dient zum Erreichen einer besseren Spannabfuhr und Oberflächen Güte.
Mit der Verwendung Reduzierungsvorrichtung können Sie Ø unter 8mm mit piko Werkzeugen arbeiten.
| Kod No | Kod | Ø D1 (min-max) | D | L | L1 | Uç | A | INSERT SCREW | Torks |
|---|---|---|---|---|---|---|---|---|---|
| H121P | BA 8-30P SET | 8-30 | |||||||
| H122P | BA 201 8-30P GÖVDE | 8-30 | |||||||
| H1221K | BA201 K8-14 T | 8-14 | 12 | 25 | 25 | TC..06 | 90° | M2 | T06 |
| H1231K | BA201 K12-18 T | 12-18 | 12 | 25 | 40 | TC..09 | 90° | M2,2 | T07 |
| H1241K | BA201 K16-22 T | 16-22 | 12 | 25 | 40 | TC..09 | 90° | M2,2 | T07 |
| H1251K | BA201 K20-26 T | 20-26 | 12 | 25 | 40 | TC..09 | 90° | M2,2 | T07 |
| H1261K | BA201 K24-30 T | 24-30 | 12 | 25 | 50 | TC..11 | 90° | M2,5 | T08 |
| H1232K | BA201 K12-18C | 12-18 | 12 | 25 | 40 | CC..06 | 95° | M2,5 | T08 |
| H1242K | BA201 K16-22C | 16-22 | 12 | 25 | 40 | CC..06 | 95° | M2,5 | T08 |
| H1252K | BA201 K20-26C | 20-26 | 12 | 25 | 40 | CC..06 | 95° | M2,5 | T08 |
| H1262K | BA201 K24-30C | 24-30 | 12 | 25 | 50 | CC..06 | 95° | M2,5 | T08 |
Ø 8~30 LANGE PLATTENHALTER
| Kod No | Kod | Ø D1 (min-max) | D | L | L1 | Uç | A | INSERT SCREW | Torks |
|---|---|---|---|---|---|---|---|---|---|
| H1222K | K8-14 30 CC06 95 | Ø8-14 | 12 | 25 | 30 | CC..06 | 95° | M2.5 | T08 |
| H1223K | K10-16 40 CC06 95 | Ø10-16 | 12 | 25 | 40 | CC..06 | 95° | M2.5 | T08 |
| H1233K | K12-18 50 CC06 95 | Ø12-18 | 12 | 25 | 50 | CC..06 | 95° | M2.5 | T08 |
| H1243K | K16-22 50 CC06 95 | Ø16-22 | 12 | 25 | 50 | CC..06 | 95° | M2.5 | T08 |
| H1244K | K16-22 60 CC06 95 | Ø16-22 | 12 | 25 | 60 | CC..06 | 95° | M2.5 | T08 |
| H1245K | K16-22 70 CC06 95 | Ø16-22 | 12 | 25 | 70 | CC..06 | 95° | M2.5 | T08 |
| H1253K | K20-26 50 CC06 95 | Ø20-26 | 12 | 25 | 50 | CC..06 | 95° | M2.5 | T08 |
| H1254K | K20-26 60 CC06 95 | Ø20-26 | 12 | 25 | 60 | CC..06 | 95° | M2.5 | T08 |
| H1255K | K20-26 70 CC06 95 | Ø20-26 | 12 | 25 | 70 | CC..06 | 95° | M2.5 | T08 |
| H1263K | K24-30 60 CC06 95 | Ø24-30 | 12 | 25 | 60 | CC..06 | 95° | M2.5 | T08 |
| H1264K | K24-30 70 CC06 95 | Ø24-30 | 12 | 25 | 70 | CC..06 | 95° | M2.5 | T08 |
| H1225K | K10-16 40 TC09 93 | Ø10-16 | 12 | 25 | 40 | TC..09 | 93° | M2.2 | T07 |
| H1256K | K20-26 50 CC06 90 | Ø20-26 | 12 | 25 | 50 | CC..06 | 90° | M2.5 | T08 |
| H1257K | K20-26 60 CC06 90 | Ø20-26 | 12 | 25 | 60 | CC..06 | 90° | M2.5 | T08 |
| H1258K | K20-26 70 CC06 90 | Ø20-26 | 12 | 25 | 70 | CC..06 | 90° | M2.5 | T08 |
| H1259K | K20-26 50 TC09 90 | Ø20-26 | 12 | 25 | 50 | TC..09 | 90° | M2.2 | T07 |
| H1260K | K20-26 60 TC09 90 | Ø20-26 | 12 | 25 | 60 | TC..09 | 90° | M2.2 | T07 |
| H1265K | K20-26 70 TC09 90 | Ø20-26 | 12 | 25 | 70 | TC..09 | 90° | M2.2 | T07 |
| H1266K | K20-26 50 TC09 93 | Ø20-26 | 12 | 25 | 50 | TC..09 | 93° | M2.2 | T07 |
| H1267K | K20-26 60 TC09 93 | Ø20-26 | 12 | 25 | 60 | TC..09 | 90° | M2.2 | T07 |
| H1268K | K20-26 70 TC09 93 | Ø20-26 | 12 | 25 | 70 | TC..09 | 93° | M2.2 | T07 |
Ø12 / 5-6-8-10 REDUZIERUNG
| Kod No | Kod | Ø | Figür No |
|---|---|---|---|
| H1210R | BA 201 12/5 RED. UZUN | 5 | 2 |
| H1211R | BA 201 12/6 RED. UZUN | 6 | 2 |
| H1212R | BA 201 12/6 RED. | 6 | 1 |
| H1213R | BA 201 12/8 RED. | 8 | 1 |
| H1214R | BA 201 12/10 RED. | 10 | 1 |
